YL-650/800/1100PC&JP-B

High-speed Automatic Folder Gluer with Inline Inspection

Get a Quote
SINOSUN YL-650/800/1100PC&JP-B high-speed automatic folder gluer with inline inspection system for printing defect detection

Main Features

Folder Gluer Machine with 8K Inline Inspection

Equipped with 4K/8K cameras, this folder gluer machine detects 0.15mm² print defects and color variations instantly. The auto-ejector removes flawed blanks before gluing, guaranteeing zero-defect packaging and eliminating manual QA costs.

Smart Automatic Carton Folding with Quick Recall

Featuring a powerful inspection algorithm, this automatic carton folding equipment allows operators to recall saved job parameters in seconds. It drastically cuts setup time for repeat orders, simplifying operation and maximizing daily production uptime.

High-Speed Box Gluing with Variable Code Verification

This high-speed box gluing system integrates advanced variable data recognition for QR and 128C barcodes. It automatically compares and rejects missing or repeated codes, ensuring 100% traceability and preventing costly supply chain compliance failures.

400m/min Versatile Corrugated Box Gluer System

Running at top speeds of 400m/min, this corrugated box gluer seamlessly processes 200-800g cardboard and N/E/F flutes. It accelerates large-volume output while adapting to diverse packaging demands, significantly increasing your overall manufacturing ROI.

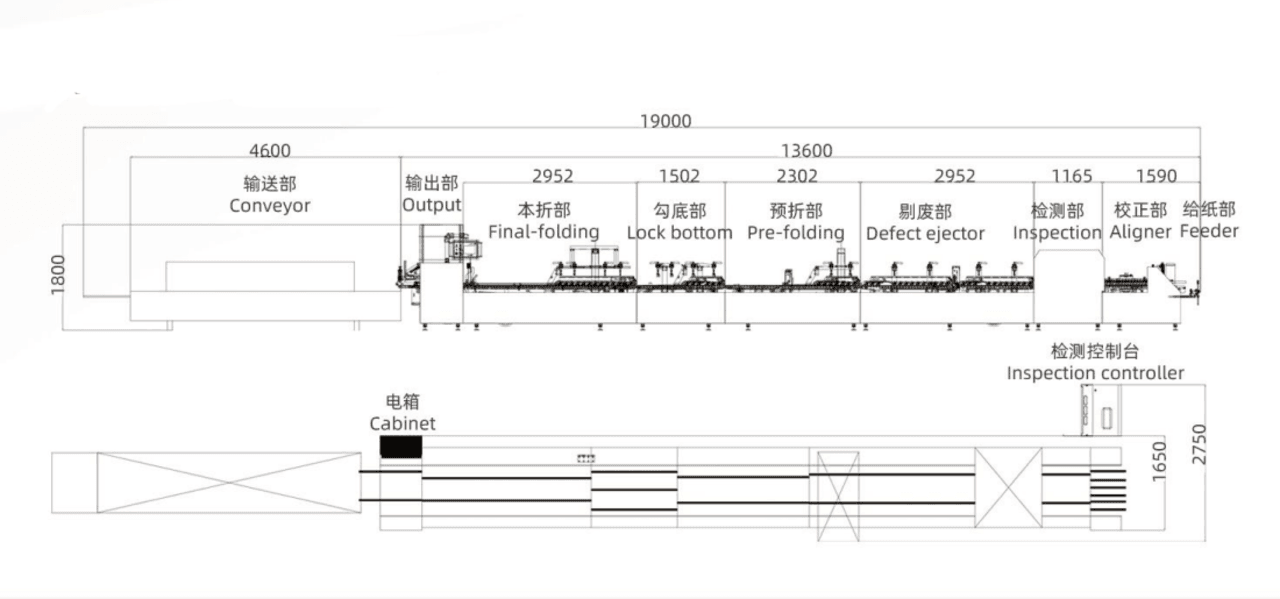

Machine Layout

Technical layout drawing of SINOSUN YL-650/850/1100PC&JP-B high-speed inspection and folder gluer, showing dimensions.

Technical Parameters

Model
YL-650PC&JP-B
YL-800PC&JP-B
YL-1100PC&JP-B
Applicable material
200-650g/m² cardboard
200-800g/m² cardboard    E/F/N flute corrugated board
Speed range
0-400m/min
0-400m/min
0-400m/min
Inching speed
30m/min
30m/min
30m/min
Max.blank width
650mm
800mm
1100mm
Dimension
(L*W*H)
19000*1650
*1800
19000*1800
*1800
23340*2200
*1700
Mechanical weight
about 8.5T
about 9T
about 12.5T
Mechanical power
about 28KW
about 34KW
about 45KW
Max.thickness of folded box
<12mm
<12mm
<12mm
Compressed air
0.5-0.7Mpa

Box parameter

Box type
Unfolded view
Model
YL-650PC&JP-B
YL-800PC&JP-B
YL-1100PC&JP-B
Linear box
Linear box template diagram displaying dashed fold lines, a side glue flap, and dimensional labels L, W, and H.
L
100-800
100-800
140-1000
W
130-650
130-800
230-1100
H
60-315
60-390
105-540
Lock bottom box
Lock bottom box template diagram displaying dashed fold lines, a side glue flap, and dimensional labels L, W, and H.
L
100-800
100-800
140-1000
W
170-650
170-800
240-1100
H
80-315
80-390
110-540
4 Corner box
L
130-800
140-1000
W
150-800
210-1000
H
20-150
30-150
6 Corner box
L
130-800
140-1000
W
250-800
310-1000
H
30-150
30-150
