GL-1100PC-A
High-speed Multifunctional Automatic Folder Gluer
Get a Quote
Main Features
Automatic Folder Gluer with Wireless Remote
Equipped with a wireless remote control and auto-synchronization touchscreen, this automatic folder gluer allows operators to debug seamlessly from any station. It drastically cuts setup time and boosts daily operational efficiency.
1100mm Versatile Corrugated Box Gluer System
Processing up to 1100mm blanks, this corrugated box gluer handles 200-800g cardboard and N/E/F/B flutes. Its modular design effortlessly produces complex 4/6 corner and flat boxes, expanding your high-margin packaging capabilities.
Heavy-Duty Folder Gluer Machine Construction
Built with a 7-ton precision-machined steel plate structure and premium global electrical components, this folder gluer machine ensures vibration-free operation. It minimizes maintenance downtime and guarantees long-term production stability for continuous runs.
Modular High-Speed Box Gluing Equipment
Operating at 300m/min, this high-speed box gluing equipment features a quick-change modular design for optional devices. It simplifies complex changeovers, allowing your team to switch production runs rapidly and maximize daily output.

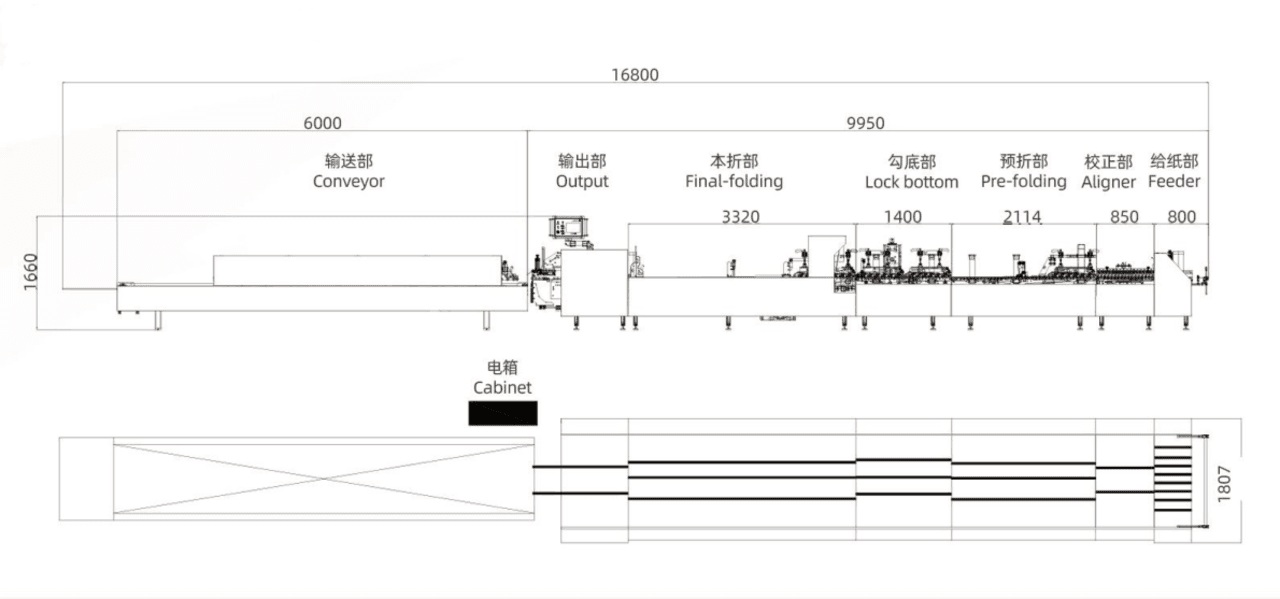

Machine Layout
Technical Parameters
Model
GL-1100PC-A
Applicable material
200-800g/m² cardboard
Speed range
0-300m/min
Inching speed
30m/min
Max.blank width
1100mm
Dimension(L*W*H)
16800*1807*1660
Mechanical weight
about 7T
Mechanical power
about 21KW
Max.thickness of folded box
<12mm
Compressed air
0.5-0.7Mpa
Box parameter
Box type
Unfolded view
Model
GL-1100PC-A
Linear box
L
140-900
W
340/190-1100
H
160/85-540
Lock bottom box
L
140-900
W
360/210-1100
H
170/95-540
4 cprner box
L
140-900
W
240/160-1000
H
30-150
6 cprner box
L
140-900
W
380/280-1100
H
30-150
Flat box
L
140-500
W
400-1100
H
30-150
